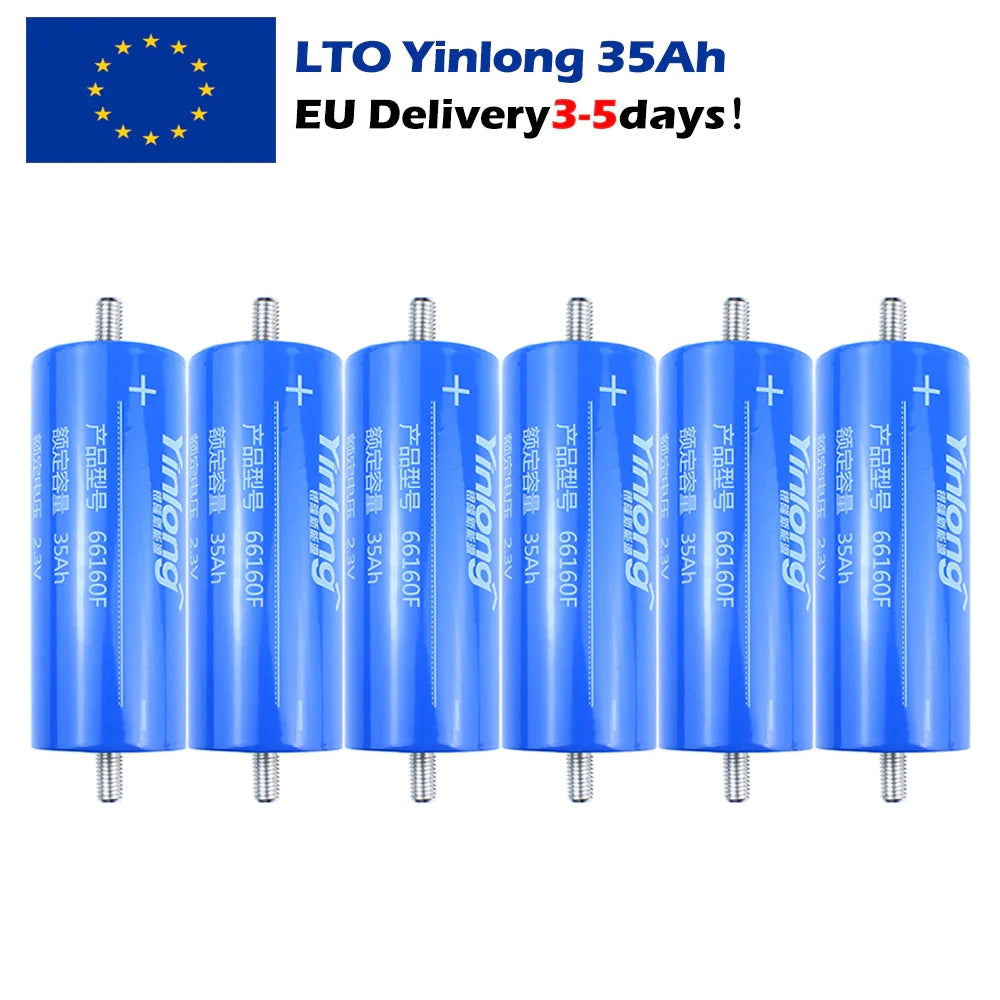

LTO Yinlong 2.3V 35Ah Battery Cycle life 25000+ Cell For -50 °low temperature discharge DIY Battery Pack 12V 24V 48V

Note:

The LTO Yinlong 2.3V 35Ah battery are original brand new cell with clear QR code. For easy assemble, we will weld M6 studs on the cell. Each battery will send 1 pcs copper busbar and 2 pcs nuts. The price to European countries are include custom clearance and tax.

Battery Specification

Rated Capacity: 35Ah
Nominal Voltage: 2.3V
Internal Impedance: ≤1.0mΩ
Standard Charge Cut-off Voltage: 2.9V
Standard Discharge Cut-off Voltage: 1.5V
Max Continuous Charge Current: 210A
Max Continuous Disharge Current: 210A
Max Pulse Charge/Discharge Current(10s): 350A
Operating Temperature Range:-40~65℃
Humidity: ≤85%RH
Storage Temperature Range: -5℃~28℃
Dimension: (Not include the studs)
Diameter: 66.0±1.0mm
Height: 161.0±1.0mm
Weight: 1220±10g
Cycle Life: Under standard test environment, discharge capacity≥80%*initial capacity after 16000 cycles

The LTO Yinlong 2.3V 35Ah battery are original brand new cell with clear QR code. For easy assemble, we will weld M6 studs on the cell. Each battery will send 1 pcs copper busbar and 2 pcs nuts. The price to European countries are include custom clearance and tax.

Warranty

The warranty period is 5 years from the date you receive.
We only replace new cell for free due to the failure of manufacturing.

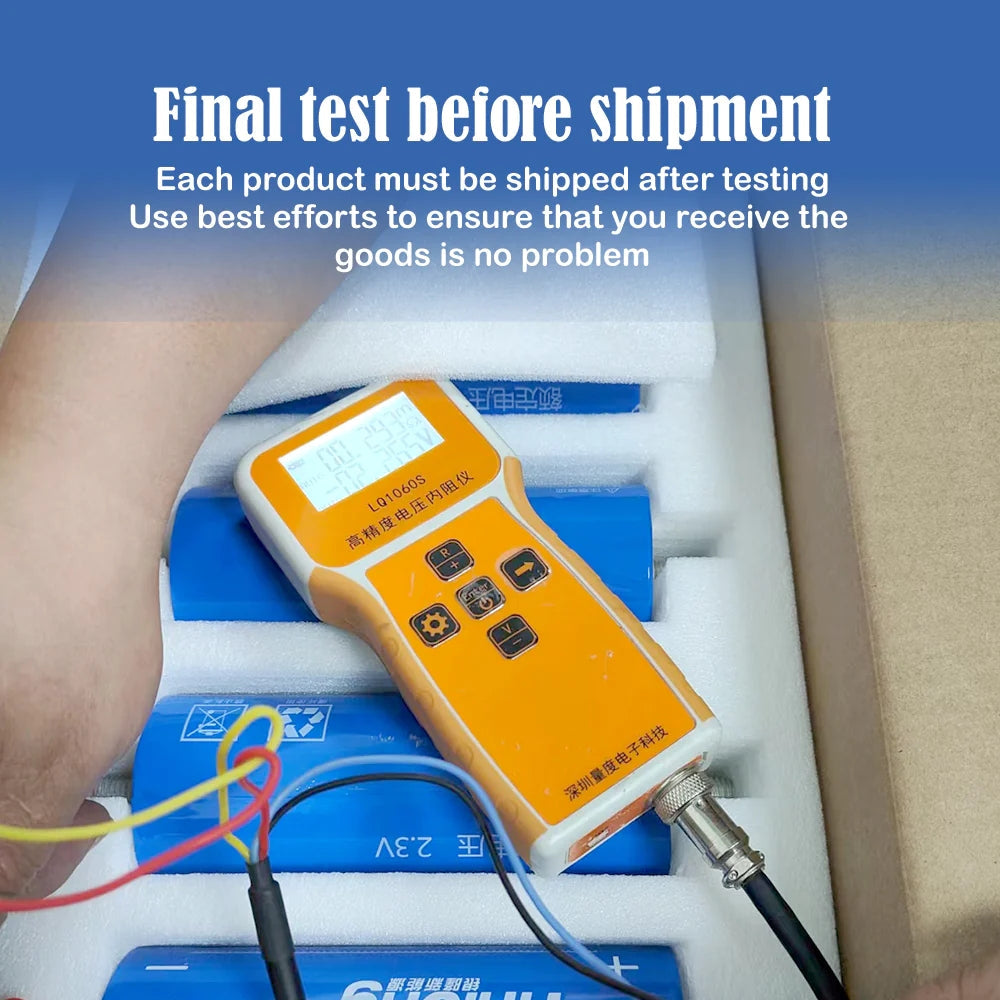

Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week, if you found problems please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.

Remark

Please read carefully all the description before taking orders, the battery is suitable for DIY lovers with experience, people who are not familiar with the safe use of lithium battery knowledge, please go to our shop to buy the finished product.

DIY battery pack must get the cells balanced (same voltage ) before assembly.
And we don’t accept refund for buyers who don’t know how to assembled or unbalanced assembly.

Please use the correct BMS during assembly. We don’t accept refund for the problem caused during assembly process or after the assembly. Such as not use the BMS, the BMS connected to the wrong wire lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.

Before assembling, please make sure use the same capacity cell and use the same brand of the cell. It is forbidden to mix cells with different capacity and brand in the same battery system. Otherwise, we will not be responsible for quality assurance.

Application
