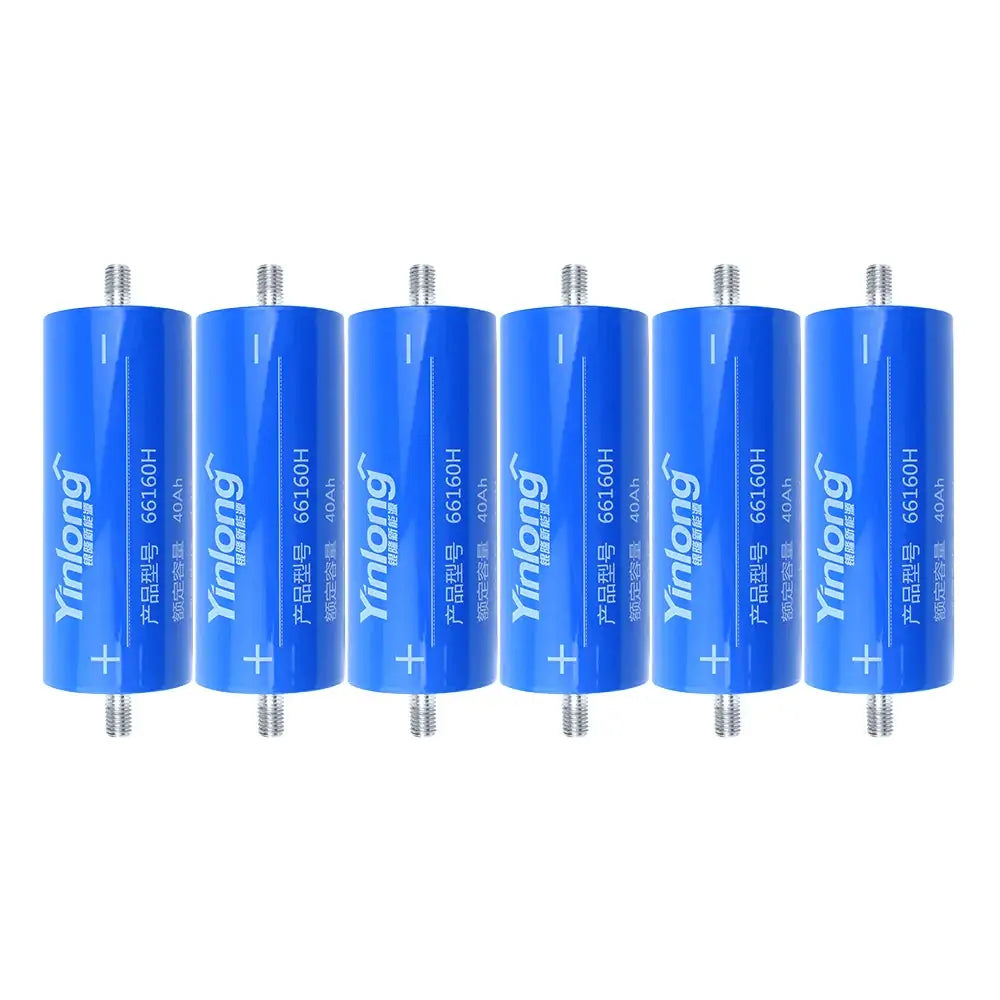

Yinlong LTO66160 2.3V 45Ah battery

Note: The LTO Yinlong 2.3V 45Ah battery are original brand new cell with clear QR code. For easy assemble, we will weld M6 studs on the cell. Each battery will send 1 pcs copper busbar and 2 pcs nuts. The price to European countries are include custom clearance and tax.

Battery Specification

Rated Capacity: 45Ah
Nominal Voltage: 2.3V
Internal Impedance: ≤1.0mΩ
Standard Charge Cut-off Voltage: 2.9V
Standard Discharge Cut-off Voltage: 1.5V
Max Continuous Charge Current: 240A
Max Continuous Disharge Current: 240A
Max Pulse Charge/Discharge Current(10s): 400A
Operating Temperature Range: :-40~65℃
Humidity: ≤85%RH
Storage Temperature Range: -5℃~28℃
Dimension: (Not include the studs)
Diameter: 66.0±1.0mm
Height: 161.0±1.0mm
Weight: 1230.0±10g
Cycle Life: 25000 cycles

Warranty

The warranty period is 12 months from the date you receive.
We only replace new cell for free due to the failure of manufacturing.

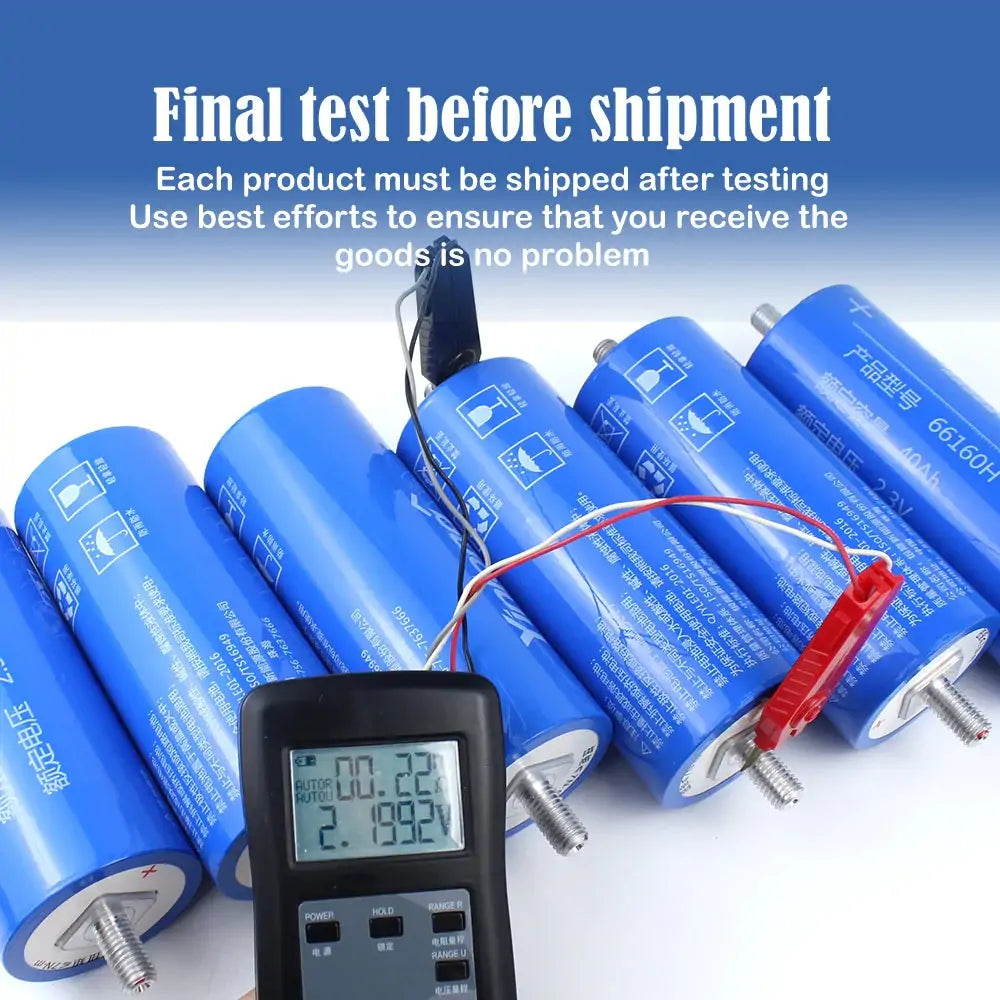

Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week, if you found problems please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.

Application

Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan...
